Plug and Play automatic tool change for cobots

WINGMAN

The Cobot Tool Changer System
Patented

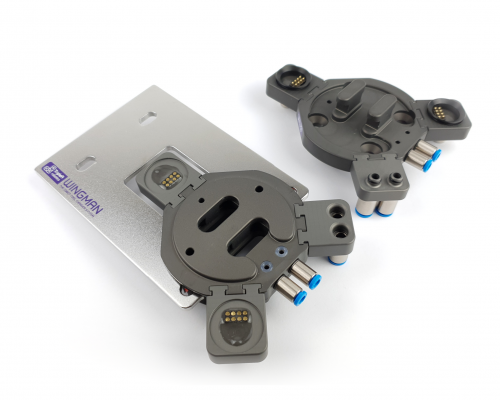

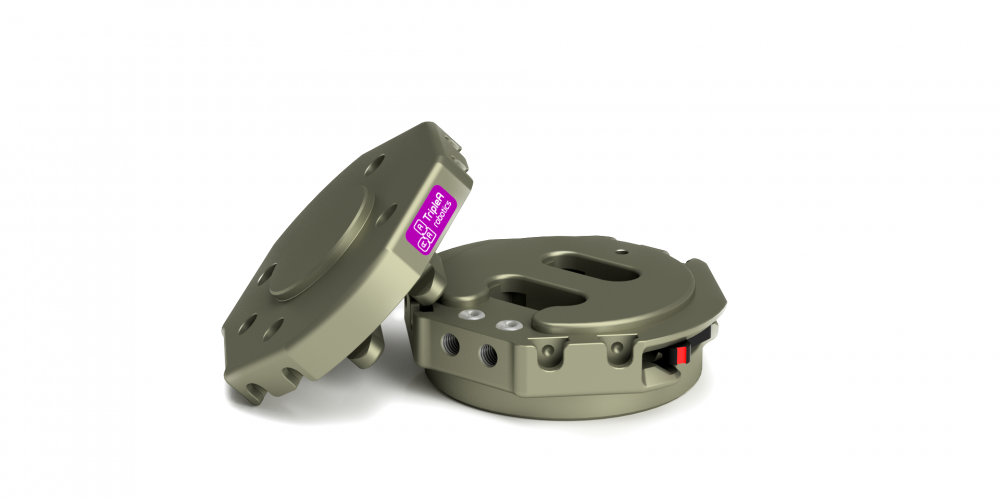

TripleA Wingman product picture_1.1.1

ONE FITS ALL


Manual and automatic tool change.
Standard ISO flange – Strong and light.

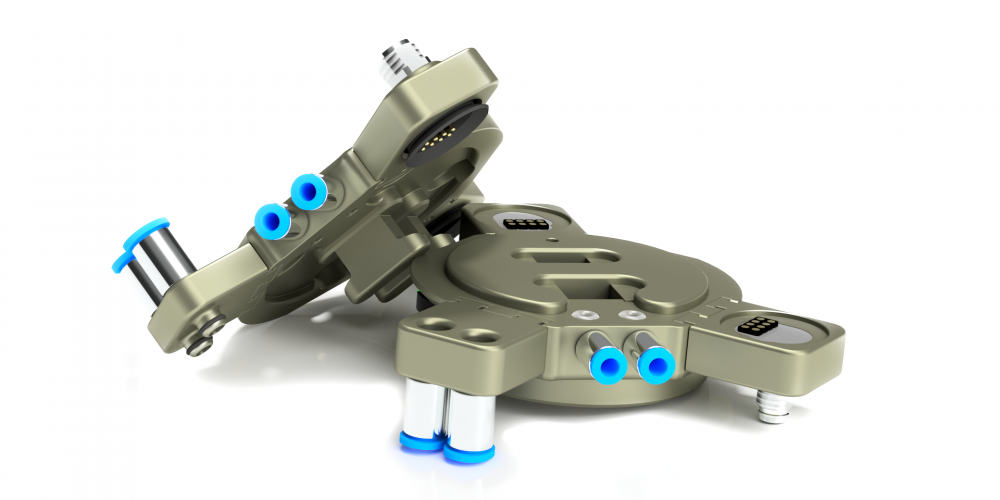

TripleA Wingman product picture_1.2.2

PLUG AND PLAY


Installed in few minutes out-of-the-box.
Automatic tool change setup in 1 minute.

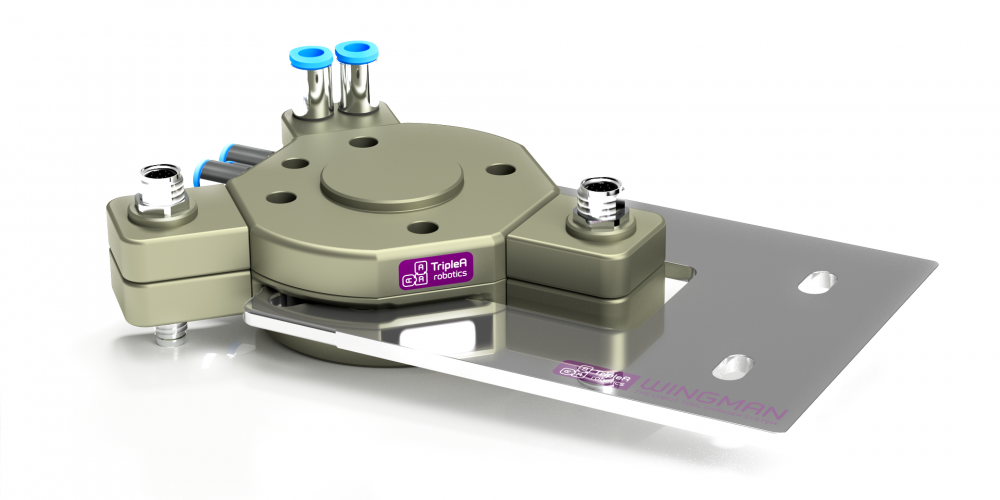

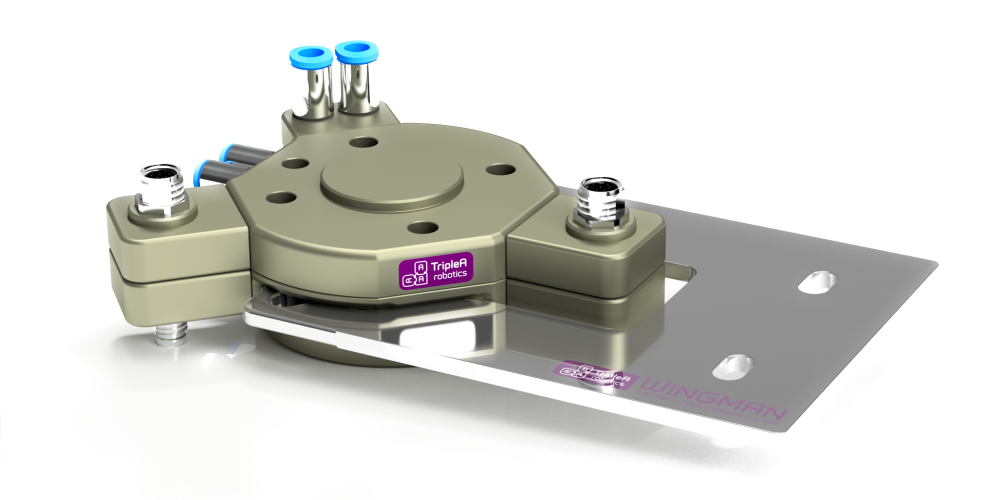

TripleA Wingman product picture_1.3.1_1.3.1

COBOT SAFE


Designed and tested for ISO/TS 15066 compliance.
Redundant mechanical locking mechanism.

APPLICATIONS

With automatic tool change, your cobot will have the flexibility to deploy more tools and generate more output.
Deploy your favorite robot tools on your favorite cobot brand. The pass-through moduls can be places to ensure perfect cable fit.

WELD

Change automatically to other tools between welding to move parts to and from the work area or to do grind work on the welded area.

PALLETIZE

Change automatically from the gripper used for palletizing to a label applicator to label the boxes that have just been palletised. Then wrap and ready to ship.

MACHINE TENDING

Change automatically to another gripper to do the change over from one production run to the next production run automatically. Even automatic tool change on your double gripper mount (Y-mount) is easy.

MOBILE ROBOT

Designed for mobile robots. Have your mobile robot carry and deploy more tools. You can even have your mobile robot autonomously collect the tools it needs for a task.

MULTI PURPOSE CELL

For multi purpose robot cells. Place the robot tools on top to optimize space. Have several tool available for box building, gluing, pick and place, secrewing, assembly etc.

SPECIFICATIONS

HIGH QUALITY

All surface treated high grade aluminium parts.
Repeatability +-0,03 mm.


COMPACT AND STRONG

Combined height 30 mm.
Combined weight 260 g.
Rated payload 33 kg.


OPTIONAL SOFTWARE

Optional URcap software for Universal Robots that provide 1-minute automatic tool change setup.

PASS-THROUGH OPTIONS

For easy adaptable connectivity between the cobot and the robot tool

Gallery picture28

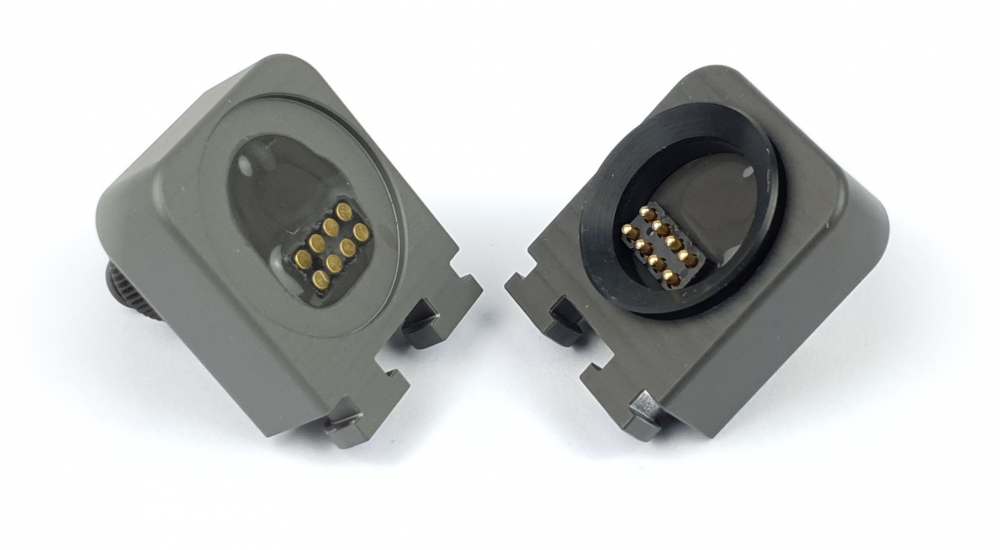

ELECTRICAL MODULES


“Click-on” pass-through modules with cobot
standard electrical M8 8 pin connectors (IP54).

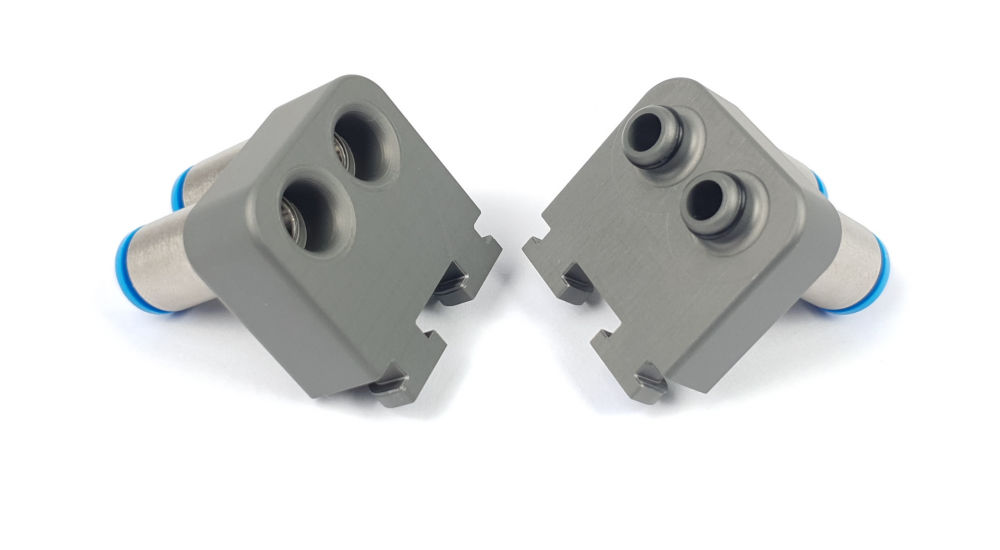

Gallery picture29

PNEUMATIC MODULES


“Click-on” pass-through modules for high flow vacuum or compressed air. Two channels for 6 mm hose.

Fittings 4mm_2

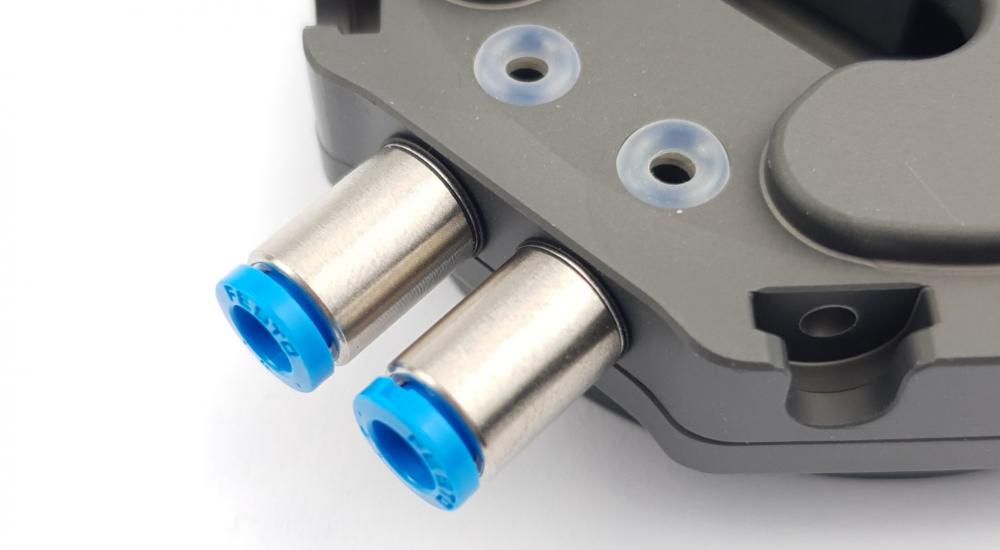

BUILT-IN PNEUMATIC


Built-in pass-through for vacuum or compressed air.
Two channels for 4 mm hose.

DOCUMENTATION

USER GUIDE

(available on request)

TESTIMONIALS

“The WINGMAN Tool Changer gives us a great flexibility due to the compact size and the click-in pass-through modules that allow us to quickly reconfigure the tool changer for new tools. Furthermore, the WINGMAN’s mechanical activated locking mechanism does not need compressed air to work, unlike traditional automatic tool changers, which makes the WINGMAN easy for us to install.​”

“We needed an automatic tool changer at an affordable price and one that did not depend on compressed air. We went with the WINGMAN Tool Changer system because it does exactly what it promisses right out of the box. It’s plug and play in few minutes and easy to integrate with our tools. In addition we found the manual tool change capability quite convient and the quality of this products is really good.​”

A

APPLICABLE

no nonsens technology

A

ADAPTABLE

lego like customization

A

AFFORDABLE

best value for money
